Pitting corrosion resistance is an essential attribute to consider when choosing components and materials for a piping system.

However, resistance levels change based on metallurgic composition and with the sheer variety of options available today, having a clear idea of corrosion resistance just by name or grade is nearly impossible.

This is where pitting resistance equivalent numbers (PRENs) — also known as pitting resistance equivalent values (PRE-values) can help.

While not absolute figures, PRENs offer a simple way to compare various alloys and their ability to withstand pitting corrosion. The British Stainless Steel Association (BSSA) warns,

“The PREN (or PRE) numbers are useful for ranking and comparing the different grades, but cannot be used to predict whether a particular grade will be suitable for a given application, where pitting corrosion may be a hazard.”

While you should always consult an engineer to ensure your materials meet all requirements, we’re going to outline how PRENs are determined and what information this value provides.

What is Pitting Corrosion?

Before you can understand what PREN values might tell you, it’s important to know what they’re related to — in this case pitting corrosion.

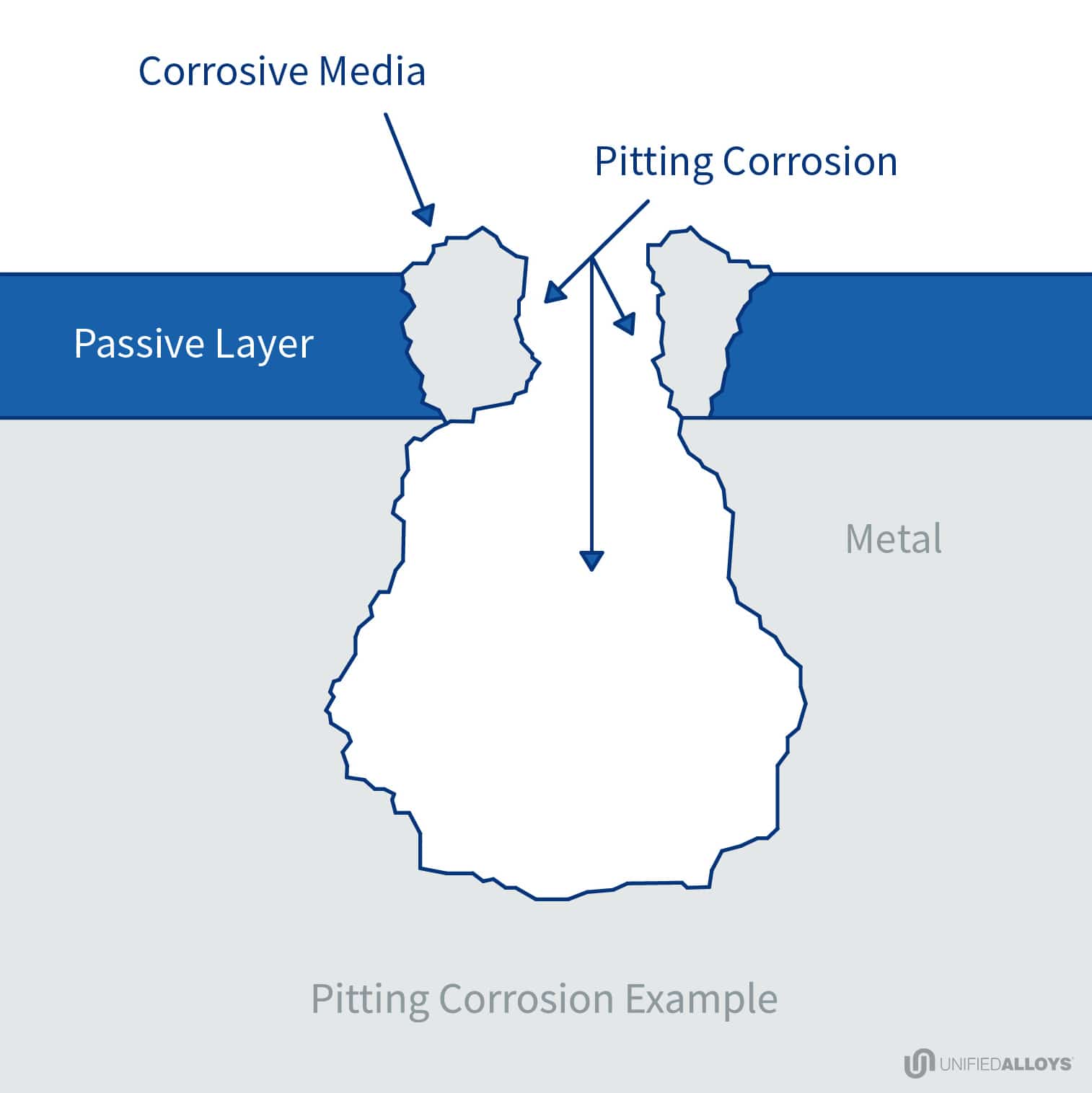

illustrated example of pitting corrosion

Pitting corrosion occurs on metals with protective films — such as stainless steel.

Often initiated by poor aeration or chemical exposure within the environment, this type of corrosion creates small localized attacks which spread quickly from the protective surface layer to the metal itself.

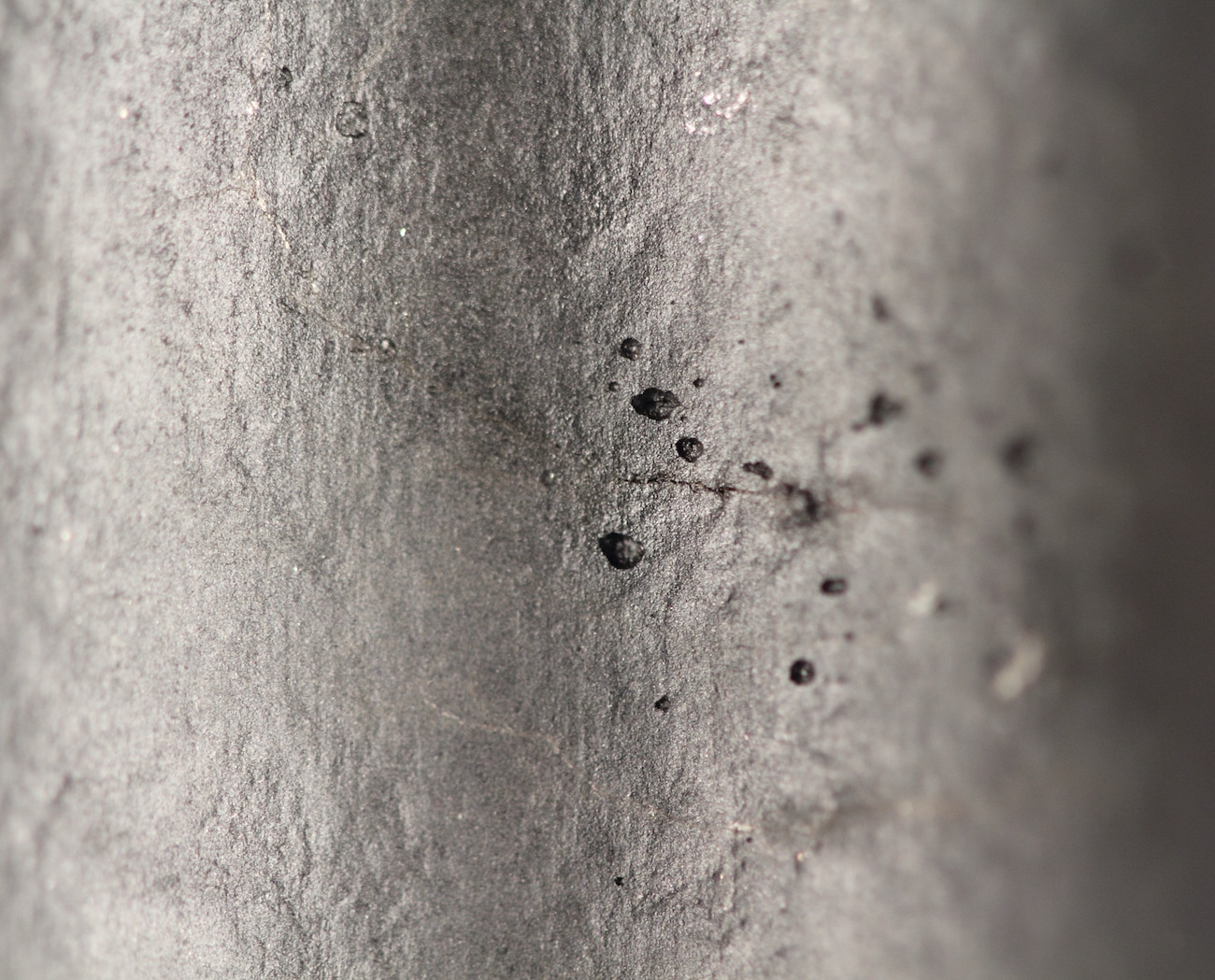

example of pitting corrosion on stainless

While sources of pitting corrosion may vary, common causes include exposure to:

  • Bromides
  • Chlorides
  • Fluorides
  • Hypochlorites
  • Iodides
  • Sulfides
  • Water

RELATED GUIDE: Understanding Stainless Steel’s Corrosion-Resistant Properties

How is the PREN of an Alloy Determined?

Exact formulas might differ. For this guide, we’ll be using two of the most widely accepted modelling formulas to determine resistance to localized pitting corrosion by chlorides.

These formulas determine the rating based upon levels of chromium (%Cr), molybdenum(%Mo), nitrogen(%N), and tungsten (%W) present in the alloy.

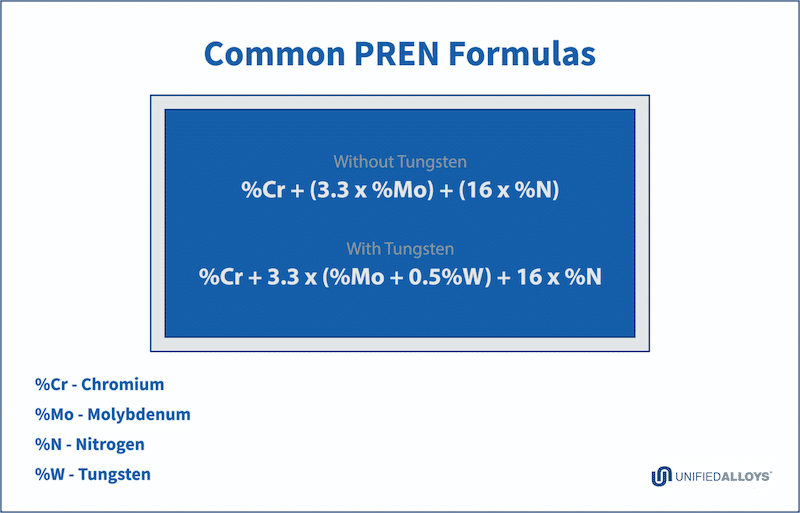

  • PREN = %Cr + (3.3 x %Mo) + (16 x %N)
  • PREN = %Cr + 3.3 x (%Mo + 0.5%W) + 16 x %N

The first formula is commonly used for stainless and duplex alloys without tungsten while the second adjusts the model to account for the tungsten present in many super duplex stainless alloys.

For either formula, results typically start around 16 and can reach numbers greater than 40. You can see an example of typical results using data from the BSSA below.

STEEL TYPE CHROMIUM % MOLYBDENUM % NITROGEN % PREN
Ferritic Steels
430 16.0-18.0 NS NS 16.0-18.0
434 16.0-18.0 0.9-1.4 NS 19.0-22.6
441 17.5-18.5 NS NS 17.5-18.5
444 17.0-20.0 1.8-2.5 0.030 MAX 23.0-28.7
Austenitic Steels
304 17.5-19.5 NS 0.11 MAX 17.5-20.8
304LN 17.5-19.5 NS 0.12-0.22 19.4-23.0
316/316L 16.5-18.5 2.0-2.5 0.11 MAX 23.1-28.5
316L (2.5% min Mo) 17.0-19.0 2.5-3.2 0.11 MAX 25.3-30.7
316LN 16.5-18.5 2.0-2.5 0.12-0.22 25.0-30.3
904L 19.0-21.0 4.0-5.0 0.15 MAX 32.2-39.9
Sanicro 28 24.0-26.0 3.0-4.0 0.11 MAX 35.9-43.0
254SMO 19.5-20.5 6.0-7.0 0.18-0.25 42.2-47.6
1925hMo 19.0-21.0 6.0-7.0 0.15-0.25 41.2-48.1
4565S 24.0-26.0 4.0-5.0 0.30-0.60 42.0-52.1
Duplex Steels
2202 22.0 0.4 0.20 26.5
2101LDX 21.0-22.0 0.1-0.8 0.20-0.25 24.5-28.6
SAF 2304 22.0-24.0 0.1-0.6 0.05-0.20 23.1-29.2
SAF 2205 21.0-23.0 2.5-3.5 0.10-0.22 30.8-38.1
SAF 2507 24.0-26.0 3.0-4.0 0.24-0.35 > 40
Zeron 100 24.0-26.0 3.0-4.0 0.20-0.30 > 40
Ferrinox 255 24.0-26.0 3.0-4.0 0.20-0.30 > 40

What Can PREN Values Tell You About A Material Choice?

A PREN should not be taken absolutely.

In other words, a 0.5 difference doesn’t necessarily indicate an exact difference in pitting corrosion resistance as characteristics for various alloys and grades vary. In fact, PRENs are only comparable within the same stainless steel family (austenitic, ferritic, duplex, etc.)

In most cases, components for use in the oil and gas industries require a PREN greater than 32. For hydrogen sulphide (H2S) environments and seawater service, a PREN of 40 or higher are typically used.

What is PREN by Parker

These numbers also vary depending on the use environment. Corrosive media outside chlorides, service temperatures, component surface finishes, system design, and acidity can all further impact pitting resistance.

As such, a PREN alone is only one facet of effective material choice. Other critical aspects include:

  • Availability
  • Cost
  • Fabricability
  • Physical traits

Summary

The information in this guide should not be used as a direct recommendation or reference for PREN values. Consulting with an engineer is recommended before making any material choices and to ensure both regulatory compliance and greater efficiency on your materials investment.

That said, PREN values are an excellent way to get a relative understanding of how the pitting corrosion resistance of various stainless steel alloys within the same family might compare.

While the information is not absolute and shouldn’t be used to a great level of precision, when combined with data related to costs, availability, and fabricability, PREN can be a useful metric to help to drive the decision making process and provide a level of confidence.
