Vic-Press Stainless Steel Pipe System
VIC-PRESS FOR SCHEDULE 10S TYPE 304/316 STAINLESS STEEL
Vic-Press for Schedule 10S Type 304/304L, 316/316L stainless steel pipe provides a fast, easy, clean, and reliable means for joining ½ 2"/15 50mm standard ASTM A-312 Schedule 10S stainless steel pipe. Vic-Press for Schedule 10S products meet ASME requirements and ratings for ANSI Class 150 systems for water, oil, gases and general chemical services and is pressure rated up to a maximum of 500 psi/3450 kPa.
The Vic-Press for Schedule 10S system requires no ame or arc as with welding, and no cutting oil, chips or preparation time as with threading or anging. Off-the-shelf Type 304/316 ASTM A-312 Schedule 10S stainless steel pipe is cut to length, inserted into the coupling and the coupling is pressed onto the pipe or fitting in seconds.
The Vic-Press for Schedule 10S system meets the requirements of ASME B31.1, B31.3 and B31.9. Request publication 18.16 for ASME B31.1, 18.17 for B31.3 and 18.18 for B31.9 requirements.
Vic-Press for Schedule 10S Type 304/316 couplings and fittings are recommended for varying concentrations of hot petroleum/water mixtures, hydrocarbons, air with oil vapors, vegetable and mineral oils, as well as automotive fluids such as engine oil and transmission fluid within the temperature range of -30°F to +300°F/-34°C to +149°C, depending on seal material selected. ANSI/NSF 61 Annex G Certi ed for cold (+86°F/+30°C) and hot (+180°F/+82°C) potable water service for Grade H,E and O seal materials. FM Approvedto 175 psi/1205 kPa.
For product installation instructions, refer to Victaulic Product Assembly Instructions (I-P500) and the Tool Operating and Maintenance Instructions Manual (TM-PFT510).
Pressure rating up to 300 psi/2065 kPa when used with Schedule 5S pipe.

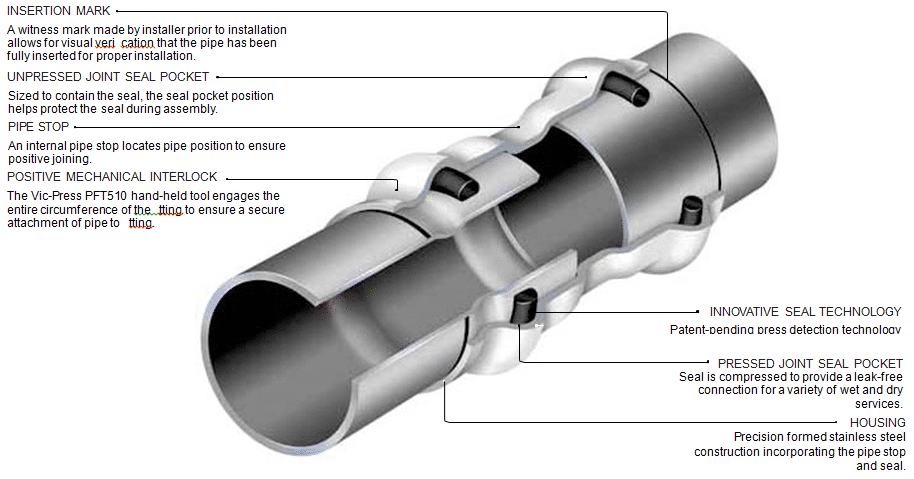

VIC-PRESS JOINING SYSTEM FOR SCHEDULE 10S STAINLESS STEEL PIPE
VIC-PRESS FOR SCHEDULE 10S TYPE 304/316 STAINLESS STEEL
MATERIAL SPECIFICATION
Housing Body: Made from Type 304/316 stainless steel.
Threaded Outlets: Made from stainless steel bar conforming to ASTM A-276, Grade 304/316, or stainless steel pipe conforming to ASTM A-312, Grade 304/316.
Plain End or Grooved End Products: Stainless steel pipe conforming to ASTM A-312, Grade 304/316.
Flanges for Style P575 and P566: ANSI Class 150 or AS 2129 Table E, Grade 304/316.
Seals:
GRADE | TEMP. RANGE | COMPOUND | COLOR CODE | GENERAL SERVICE RECOMMENDATIONS |
---|---|---|---|---|
H | 20°F to +210°F/29°C to +98°C | HNBR Hydrogenated Nitrile Butadiene Rubber | Two Orange Stripes | Recommended for hot petroleum/water mixtures, hyrdocarbons, air with oil vapors, vegetable and mineral oils, engine oil, transmission oil.ANSI/NSF 61 Annex G Certi ed for portable water up to 180°F/82°C. |
* Standard Seal - Vic-Press products will ship with Grade H seal unless otherwise speci ed on your order | ||||
E | 30°F to +250°F/34°C to +121°C | EPDM Ethylene Propylene Diene Monomer | Green Stripe | Recommended for hot water service, dilute acids, oil-free air, chemical services. NOT RECOMMENDED FOR PETROLEUM SERVICES. NOT RECOMMENDED FOR STEAM SERVICES.ANSI/NSF 61 Annex G Certi ed for portable water up to 180°F/82°C. |
O | +20°F to +300°F/7°C to +149°C | Fluoroelastomer | Blue Stripe | Recommended for oxidizing acids, petroleum oils, halogenated hydrocarbons, lubricants, hydraulic fluids, organic liquids, and air with hydrocarbons. NOT RECOMMENDED FOR,HOT WATER OR STEAM SERVICES.ANSI/NSF 61 Annex G Certi ed for portable,water up to 180°F/82°C. |
WARNING |
---|
Vic-Press for Schedule 10S products for Type 304/316 stainless steel must only be used on services compatible with seal and fitting materials.Incompatible services may result in leakage. Always reference the latest Victaulic Gasket Selection Guide (05.01) for special seal service recommendations and for a listing of services which are not recommended. |
Dimensional Information
Products in the Vic-Press for Schedule 10S system for Type 304/316 stainless steel have unique center-to-end or end-to-end dimensions P which incorporate speci c, takeout dimensions for easy fabrication calculations.
Use of threaded products employing special features such as probes, escutcheon cups, etc., should be checked to be certain P P the thread standard and length of insertion are compatible with fitting dimensions.
Failure to verify dimensional suitability in advance may result in difficulties in assembly.
END TYPE CODE
P = Vic-Press Schedule 10SF = Female Pipe Thread
M = Male Pipe Thread
T = Plain End L = Flanged G = Grooved W = Welded
EOB = End of Branch
Standard Coupling
STYLE P507 (P × P)
Working pressure: 500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Weight Each | ||
---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | E to E | U Takeout | Lbs. kgv |
½ | 0.84 | 2.78 | 0.65 | 0.2 |
15 | 21.3 | 70.6 | 16.5 | 0.1 |
¾ | 1.05 | 2.78 | 0.65 | 0.3 |
20 | 26.7 | 70.6 | 16.5 | 0.1 |
1 | 1.315 | 3.11 | 0.73 | 0.5 |
25 | 33.4 | 79 | 18.5 | 0.2 |
1½ | 1.9 | 3.48 | 0.72 | 0.7 |
40 | 48.3 | 88.4 | 18.3 | 0.3 |
2 | 2.375 | 3.96 | 0.71 | 1 |
50 | 60.3 | 100.6 | 18 | 0.5 |
Slip Coupling
STYLE P508 (P × P)
Working pressure: 500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Weight Each | ||
---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | E to E | U Takeout | Lbs. kgv |
½ | 0.84 | 3.79 | 1.06 | 0.3 |
15 | 21.3 | 96.2 | 26.9 | 0.1 |
¾ | 1.05 | 3.92 | 1.06 | 0.4 |
20 | 26.7 | 99.6 | 26.9 | 0.2 |
1 | 1.315 | 4.55 | 1.19 | 0.7 |
25 | 33.4 | 115.6 | 30.2 | 0.3 |
1½ | 1.9 | 5.33 | 1.38 | 1.1 |
40 | 48.3 | 135.3 | 35.1 | 0.5 |
2 | 2.375 | 6.18 | 1.63 | 1.6 |
50 | 60.3 | 157.1 | 41.4 | 0.7 |
Dimensional Information
Tee
STYLE P572 (P × P × P)
Working pressure: 500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Weight Each | ||||
---|---|---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | C to P | U1 | C to EOB | U2 | Lbs. kg |
½ | 0.84 | 1.71 | 1.29 | 1.91 | 0.84 | 0.4 |
15 | 21.3 | 43.4 | 32.8 | 48.5 | 21.3 | 0.2 |
¾ | 1.05 | 2.01 | 1.89 | 1.93 | 0.87 | 0.5 |
20 | 26.7 | 51.1 | 48 | 49 | 22.1 | 0.2 |
1 | 1.315 | 2.27 | 2.17 | 2.24 | 1.05 | 0.9 |
25 | 33.4 | 57.7 | 55.1 | 56.9 | 26.7 | 0.4 |
1½ | 1.9 | 2.72 | 2.68 | 2.74 | 1.37 | 1.5 |
40 | 48.3 | 69.1 | 68.1 | 69.6 | 34.8 | 0.7 |
2 | 2.375 | 3.21 | 3.17 | 3.36 | 1.73 | 2.1 |
50 | 60.3 | 81.5 | 80.5 | 85.3 | 43.9 | 1 |
Tee with Threaded Branch
STYLE P578 (P × P × F )
Working pressure:500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Wgt. Each | |||||||
---|---|---|---|---|---|---|---|---|---|
Nominal Size Inches mm | C to P | U1 | C to EOB | U2 | Lbs. kg | ||||
½ | × | ½ | × | ½ | 1.71 | 1.29 | 1.46 | 0.93 | 0.4 |
15 | 15 | 15 | 43.4 | 32.8 | 37.1 | 23.6 | 0.2 | ||
¾ | × | ¾ | × | ½ | 2.01 | 1.89 | 1.57 | 1.04 | 0.5 |
20 | 20 | 15 | 51.1 | 48.0 | 39.9 | 26.4 | 0.2 | ||
¾ | 2.01 | 1.89 | 1.56 | 1.02 | 0.6 | ||||
20 | 51.1 | 48.0 | 39.6 | 25.9 | 0.3 | ||||
1 | × | 1 | × | ½ | 2.27 | 2.17 | 1.70 | 1.17 | 0.9 |
25 | 25 | 15 | 57.7 | 55.1 | 43.2 | 29.7 | 0.4 | ||
¾ | 2.27 | 2.17 | 1.70 | 1.15 | 0.9 | ||||
20 | 57.7 | 55.1 | 43.2 | 29.2 | 0.4 | ||||
1 | 2.27 | 2.17 | 1.83 | 1.15 | 1.1 | ||||
25 | 57.7 | 55.1 | 46.5 | 29.2 | 0.5 | ||||
1½ | × | 1½ | × | ½ | 2.72 | 2.68 | 1.99 | 1.46 | 1.4 |
40 | 40 | 15 | 69.1 | 68.1 | 50.5 | 37.1 | 0.6 | ||
¾ | 2.72 | 2.68 | 1.99 | 1.44 | 1.5 | ||||
20 | 69.1 | 68.1 | 50.5 | 36.6 | 0.7 | ||||
1 | 2.72 | 2.68 | 2.12 | 1.44 | 1.5 | ||||
25 | 69.1 | 68.1 | 53.8 | 36.6 | 0.7 | ||||
2 | × | 2 | × | ½ | 3.21 | 3.17 | 2.23 | 1.70 | 1.7 |
50 | 50 | 15 | 81.5 | 80.5 | 56.6 | 43.2 | 0.8 | ||
¾ | 3.21 | 3.17 | 2.23 | 1.68 | 1.7 | ||||
20 | 81.5 | 80.5 | 56.6 | 42.7 | 0.8 | ||||
1 | 3.21 | 3.17 | 2.36 | 1.68 | 2.0 | ||||
25 | 81.5 | 80.5 | 59.9 | 42.7 | 0.9 |
Elbows
STYLE P568 90º Elbow (P × P)
STYLE P562 90º Street Elbow (P x T)
STYLE P571 45º Elbow (P x P)
STYLE P563 45º Street Elbow (P x T)
Working pressure: 500 psi/3450 kPa
Size | Style 568 90° Elbow | Style P562 90° Street Elbow | ||||||
---|---|---|---|---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | C to P Inches mm | U Takeout | Inches mm | Approx. Weight Each | Lbs. kg | C to P* Inches mm | U Takeout |
½ | 0.84 | 2.64 | 1.53 | 0.3 | 2.64 | 1.53 | 3.04 | 0.3 |
15 | 21.3 | 67.1 | 38.9 | 0.1 | 67.1 | 38.9 | 77.2 | 0.1 |
¾ | 1.05 | 2.95 | 1.89 | 0.4 | 2.95 | 1.89 | 3.35 | 0.4 |
20 | 26.7 | 74.9 | 48 | 0.2 | 74.9 | 48 | 85.1 | 0.2 |
1 | 1.315 | 3.52 | 2.33 | 0.8 | 3.52 | 2.33 | 4.32 | 0.7 |
25 | 33.4 | 89.4 | 59.2 | 0.4 | 89.4 | 59.2 | 109.7 | 0.3 |
1½ | 1.9 | 4.55 | 3.18 | 1.4 | 4.55 | 3.18 | 4.55 | 1.4 |
40 | 48.3 | 115.6 | 80.8 | 0.6 | 115.6 | 80.8 | 115.6 | 0.6 |
2 | 2.375 | 5.52 | 3.9 | 2 | 5.52 | 3.9 | 5.52 | 2 |
50 | 60.3 | 140.2 | 99.1 | 0.9 | 140.2 | 99.1 | 140.2 | 0.9 |
Size | Style 571 45° Elbow | Style P563 45° Street Elbow | ||||||
---|---|---|---|---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | C to P Inches mm | U Takeout | Inches mm | Approx. Weight Each | Lbs. kg | C to P* Inches mm | U Takeout |
½ | 0.84 | 1.89 | 0.83 | 0.2 | 1.89 | 0.83 | 1.89 | 0.2 |
15 | 21.3 | 48 | 21.1 | 0.1 | 48 | 21.1 | 48 | 0.1 |
¾ | 1.05 | 2.56 | 1.5 | 0.4 | 2.56 | 1.5 | 2.56 | 0.4 |
20 | 26.7 | 65 | 38.1 | 0.2 | 65 | 38.1 | 65 | 0.2 |
1 | 1.315 | 3.27 | 2.09 | 0.8 | 3.27 | 2.09 | 3.27 | 0.8 |
25 | 33.4 | 83.1 | 53.1 | 0.4 | 83.1 | 53.1 | 83.1 | 0.4 |
1½ | 1.9 | 4.96 | 3.59 | 1.7 | 4.96 | 3.59 | 4.96 | 1.7 |
40 | 48.3 | 126 | 91.2 | 0.8 | 126 | 91.2 | 126 | 0.8 |
2 | 2.375 | 5.84 | 4.22 | 2.5 | 5.84 | 4.22 | 5.84 | 2.5 |
50 | 60.3 | 148.3 | 107.2 | 1.1 | 148.3 | 107.2 | 148.3 | 1.1 |
Tee with Reducing Branch
STYLE P573 (P × P × P)
Working pressure: 500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Wgt. Each | |||||||
---|---|---|---|---|---|---|---|---|---|
Nominal Size Inches mm | C to P | U1 Takeout | C to EOB | U2 Takeout | Lbs. kg | ||||
¾ | × | ¾ | × | ½ | 2.01 | 1.89 | 2.01 | 0.95 | 0.5 |
20 | 20 | 15 | 51.1 | 48.0 | 51.1 | 24.1 | 0.2 | ||
1 | × | 1 | × | ½ | 2.27 | 2.17 | 2.14 | 1.08 | 0.8 |
25 | 25 | 15 | 57.7 | 55.1 | 54.4 | 27.4 | 0.4 | ||
¾ | 2.27 | 2.17 | 2.07 | 1.00 | 0.8 | ||||
20 | 57.7 | 55.1 | 52.6 | 25.4 | 0.4 | ||||
1½ | × | 1½ | × | ½ | 2.72 | 2.69 | 2.44 | 1.17 | 1.2 |
40 | 40 | 15 | 69.1 | 68.3 | 62.0 | 29.7 | 0.5 | ||
¾ | 2.72 | 2.69 | 2.36 | 1.29 | 1.3 | ||||
20 | 69.1 | 68.3 | 59.9 | 32.8 | 0.6 | ||||
1 | 2.72 | 2.69 | 2.53 | 1.34 | 1.4 | ||||
25 | 69.1 | 68.3 | 62.3 | 34.0 | 0.6 | ||||
2 | × | 2 | × | ½ | 3.21 | 3.16 | 2.67 | 1.61 | 1.7 |
50 | 50 | 15 | 81.5 | 80.3 | 67.8 | 40.9 | 0.8 | ||
¾ | 3.21 | 3.16 | 2.60 | 1.53 | 1.7 | ||||
20 | 81.5 | 80.3 | 66.0 | 38.9 | 0.8 | ||||
1 | 3.21 | 3.16 | 2.77 | 1.58 | 1.8 | ||||
25 | 81.5 | 80.3 | 70.4 | 40.1 | 0.8 | ||||
1½ | 3.21 | 3.16 | 2.98 | 1.60 | 2.0 | ||||
40 | 81.5 | 80.3 | 75.7 | 40.6 | 0.9 |
Male Threaded Adapter
STYLE P576 (P × M)
Working pressure: 500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Wgt. Each | ||||
---|---|---|---|---|---|---|
Nominal Size Inches mm | E to E | U Takeout | IL Insert. Length | Lbs. kg | ||
½ | × | ½ | 3.93 | 2.32 | 1.06 | 0.3 |
15 | 15 | 99.8 | 58.9 | 26.9 | 0.1 | |
¾ | × | ½ | 3.34 | 1.75 | 1.06 | 0.4 |
20 | 15 | 84.8 | 44.5 | 26.9 | 0.2 | |
¾ | 3.85 | 2.22 | 1.06 | 0.4 | ||
20 | 97.8 | 56.4 | 26.9 | 0.2 | ||
1 | 3.34 | 1.60 | 1.06 | 0.5 | ||
25 | 84.8 | 40.6 | 26.9 | 0.2 | ||
1 | × | ¾ | 3.50 | 1.77 | 1.19 | 0.5 |
25 | 20 | 88.9 | 45.0 | 30.2 | 0.2 | |
1 | 4.19 | 2.32 | 1.19 | 0.6 | ||
25 | 106.4 | 58.9 | 30.2 | 0.3 | ||
1½ | × | ¾ | 3.65 | 1.73 | 1.38 | 0.8 |
40 | 20 | 92.7 | 43.9 | 35.1 | 0.4 | |
1½ | 4.38 | 2.28 | 1.38 | 1.0 | ||
40 | 111.3 | 57.9 | 35.1 | 0.5 | ||
2 | × | 2 | 4.86 | 2.46 | 1.63 | 1.4 |
50 | 50 | 123.4 | 62.5 | 41.4 | 0.6 |
End Cap
STYLE P560
Working pressure: 500 psi/3450 kPa
Size | Dimensions - Inches/mm | Approx.Wgt. Each | ||
---|---|---|---|---|
Nominal Size Inches mm | E to E | IL Insertion Length | CL Cut-off Line | Lbs.kg |
½ | 4.00 | 1.06 | 0.5 | 0.24 |
15 | 101.60 | 26.9 | 12.7 | 0.11 |
¾ | 4.00 | 1.06 | 0.5 | 0.30 |
20 | 101.60 | 26.9 | 12.7 | 0.14 |
1 | 4.38 | 1.19 | 0.5 | 0.54 |
25 | 111.25 | 30.2 | 12.7 | 0.24 |
1½ | 4.75 | 1.38 | 0.5 | 0.87 |
40 | 120.65 | 35.1 | 12.7 | 0.39 |
2 | 5.25 | 1.63 | 0.5 | 1.22 |
50 | 133.35 | 41.4 | 12.7 | 0.55 |
Female Threaded Adapter
STYLE P579 (P × F)
Working pressure: 500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Wgt. Each | ||||
---|---|---|---|---|---|---|
Nominal Size Inches mm | E to E | U Takeout | IL Insert. Length | Lbs. kg | ||
½ | × | ½ | 2.39 | 0.79 | 1.06 | 0.3 |
15 | 15 | 60.7 | 20.1 | 26.9 | 0.1 | |
¾ | × | ½ | 2.31 | 0.71 | 1.06 | 0.3 |
20 | 15 | 58.7 | 18.0 | 26.9 | 0.1 | |
¾ | 2.31 | 0.79 | 1.06 | 0.4 | ||
20 | 58.7 | 20.1 | 26.9 | 0.2 | ||
1 | × | ½ | 2.47 | 0.75 | 1.19 | 0.7 |
25 | 15 | 62.7 | 19.1 | 30.2 | 0.3 | |
¾ | 2.47 | 0.73 | 1.19 | 0.6 | ||
20 | 62.7 | 18.5 | 30.2 | 0.3 | ||
1 | 2.60 | 0.88 | 1.19 | 0.6 | ||
25 | 66.0 | 22.4 | 30.2 | 0.3 | ||
1½ | × | 1 | 2.92 | 0.91 | 1.38 | 1.0 |
40 | 25 | 74.2 | 23.1 | 35.1 | 0.5 | |
1¼ | 2.92 | 0.86 | 1.38 | 0.8 | ||
30 | 74.2 | 21.8 | 35.1 | 0.4 | ||
1½ | 2.92 | 0.86 | 1.38 | 1.0 | ||
40 | 74.2 | 21.8 | 35.1 | 0.5 | ||
2 | × | 1¼ | 3.57 | 1.24 | 1.63 | 1.1 |
50 | 40 | 90.7 | 31.5 | 41.4 | 0.5 | |
1½ | 3.57 | 1.24 | 1.63 | 1.3 | ||
40 | 90.7 | 31.5 | 41.4 | 0.6 | ||
2 | 3.57 | 1.24 | 1.63 | 1.2 | ||
50 | 90.7 | 31.5 | 41.4 | 0.5 |
Threaded Union
STYLE P585 (P × P)
Working pressure: 500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Wgt. Each | ||
---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | E to E | U Takeout | Lbs. kg |
½ | 0.84 | 7.5 | 5.37 | 3 |
15 | 21.3 | 190.5 | 136.4 | 1.4 |
¾ | 1.05 | 7.37 | 5.24 | 3.7 |
20 | 26.7 | 187.2 | 133.1 | 1.7 |
1 | 1.315 | 7.59 | 5.21 | 4.3 |
25 | 33.4 | 192.8 | 132.3 | 2 |
1½ | 1.9 | 8.36 | 5.61 | 6 |
40 | 48.3 | 212.3 | 142.5 | 2.7 |
2 | 2.375 | 8.01 | 4.76 | 6.8 |
50 | 60.3 | 203.5 | 120.9 | 3.1 |
Transition Nipple
STYLE P577 (G × T)
Working pressure: 500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Wgt. Each | ||
---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | E to E | L1 Takeout | Lbs. kg |
¾ | 1.05 | 4 | 1.06 | 0.3 |
20 | 26.7 | 101.6 | 26.9 | 0.1 |
1 | 1.315 | 4 | 1.19 | 0.5 |
25 | 33.4 | 101.6 | 30.2 | 0.2 |
1½ | 1.9 | 4 | 1.38 | 0.7 |
40 | 48.3 | 101.6 | 35.1 | 0.3 |
2 | 2.375 | 4 | 1.63 | 0.9 |
50 | 60.3 | 101.6 | 41.4 | 0.4 |
Concentric Reducer
STYLE P574 (P × P)
Working pressure: 500 psi/3450 kPa
Size | Dimensions Inches/mm | Approx. Wgt. Each | |||
---|---|---|---|---|---|
Nominal Size Inches mm | E to E | U Takeout | Lbs. kg | ||
¾ | × | ½ | 4.25 | 2.13 | 0.5 |
20 | 15 | 108.0 | 54.1 | 0.2 | |
1 | × | ½ | 4.92 | 2.67 | 0.6 |
25 | 15 | 125.0 | 67.8 | 0.3 | |
¾ | 4.84 | 2.59 | 0.7 | ||
20 | 122.9 | 65.8 | 0.3 | ||
1½ | × | ½ | 5.57 | 3.13 | 0.9 |
40 | 15 | 141.5 | 79.5 | 0.4 | |
¾ | 5.49 | 3.06 | 1.0 | ||
20 | 139.4 | 77.7 | 0.5 | ||
1 | 5.66 | 3.09 | 1.1 | ||
25 | 143.8 | 78.5 | 0.5 | ||
2 | × | ½ | 6.52 | 3.84 | 1.2 |
50 | 15 | 165.6 | 97.5 | 0.5 | |
¾ | 6.44 | 3.76 | 1.3 | ||
20 | 163.6 | 95.5 | 0.6 | ||
1 | 6.60 | 3.79 | 1.4 | ||
25 | 167.6 | 96.3 | 0.6 | ||
1½ | 6.75 | 3.76 | 1.6 | ||
40 | 171.5 | 95.5 | 0.7 |
Flange Adapter
Raised face one-piece stainless steel ange adapter
STYLE P575 (P × L)
Working pressure: 275 psi/1896 kPa
ANSI Class 150 Flange Adapter | |||||||
---|---|---|---|---|---|---|---|
Size | Dimensions Inches/mm | Approx. Wgt. Each | |||||
Nominal Size Inches mm | Actual Outside Diameter Inches mm | W | X | Y | E to E | U Takeout | Lbs. kg |
½ | 0.84 | 1.38 | 2.38 | 3.5 | 3.46 | 2.39 | 2.2 |
15 | 21.3 | 35 | 60.5 | 88.9 | 87.9 | 60.7 | 1 |
¾ | 1.05 | 1.69 | 2.75 | 3.88 | 3.34 | 2.27 | 2.3 |
20 | 26.7 | 42.9 | 69.9 | 98.6 | 84.8 | 57.7 | 1 |
1 | 1.315 | 2 | 3.12 | 4.25 | 3.46 | 2.27 | 2.8 |
25 | 33.4 | 50.8 | 79.3 | 108 | 87.9 | 57.7 | 1.3 |
1½ | 1.9 | 2.88 | 3.88 | 5 | 3.45 | 2.07 | 3.6 |
40 | 48.3 | 73.2 | 98.6 | 127 | 87.6 | 52.3 | 1.6 |
2 | 2.375 | 3.62 | 4.75 | 6 | 3.42 | 1.79 | 5.8 |
50 | 60.3 | 92 | 120.7 | 152.4 | 86.9 | 45.5 | 2.6 |
AS 2129 Table E Flange Adapter | |||||||
---|---|---|---|---|---|---|---|
Size | Dimensions Inches/mm | Approx. Wgt. Each | |||||
Nominal Size Inches mm | Actual Outside Diameter Inches mm | W | X | Y | E to E | U Takeout | Lbs. kg |
½ | 0.84 | 1.85 | 2.64 | 3.74 | 3.46 | 2.39 | 2.2 |
15 | 21.3 | 47 | 67 | 95 | 87.9 | 60.7 | 1 |
¾ | 1.05 | 2.89 | 2.87 | 3.94 | 3.34 | 2.27 | 2.3 |
20 | 26.7 | 53 | 73 | 100 | 84.8 | 57.7 | 1 |
1 | 1.315 | 2.48 | 337 | 4.53 | 3.46 | 2.27 | 2.8 |
25 | 33.4 | 63 | 83 | 115 | 87.9 | 57.7 | 1.3 |
1½ | 1.9 | 3.07 | 3.86 | 5.31 | 3.45 | 2.07 | 3.6 |
40 | 48.3 | 78 | 98 | 135 | 87.6 | 52.6 | 1.6 |
2 | 2.375 | 3.54 | 4.49 | 5.91 | 3.42 | 1.79 | 5.8 |
50 | 60.3 | 90 | 114 | 150 | 86.9 | 45.5 | 2.6 |
Van Stone Flange Adapter
Carbon Steel raised face slip on ange, with stainless steel stub end
STYLE P566 (P × L)
Working pressure: 275 psi/1896 kPa
Size | Dimensions Inches/mm | Approx. Wgt. Each | |||||
---|---|---|---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | W | X | Y | E to E | U Takeout | Lbs. kg |
½ | 0.84 | 1.38 | 2.38 | 3.5 | 3.37 | 2.3 | 2.4 |
15 | 21.3 | 35 | 60.5 | 88.9 | 85.6 | 58.4 | 1.1 |
¾ | 1.05 | 1.69 | 2.75 | 3.88 | 3.29 | 2.22 | 2.5 |
20 | 26.7 | 42.9 | 69.9 | 98.6 | 83.6 | 56.4 | 1.1 |
1 | 1.315 | 2 | 3.12 | 4.25 | 3.45 | 2.26 | 3 |
25 | 33.4 | 50.8 | 79.3 | 108 | 87.6 | 57.4 | 1.4 |
1½ | 1.9 | 2.88 | 3.88 | 5 | 3.61 | 2.22 | 4.1 |
40 | 48.3 | 73.2 | 98.6 | 127 | 91.7 | 56.4 | 1.9 |
2 | 2.375 | 3.62 | 4.75 | 6 | 4.55 | 2.92 | 6.8 |
50 | 60.3 | 92 | 120.7 | 152.4 | 115.6 | 74.2 | 3.1 |
Vic-Press Schedule 10S Type 304/316 Stainless Steel Ball Valve
SERIES P569
Working pressure: 400 psi/2750 kPa
Series P569 Vic-Press Schedule for 10S System Ball Valves with Type 304/316 ends feature full stainless steel body and trim, rated for service up to 400psi/2750 kPa.
The valves are constructed of Type 304/316 (CF8M) stainless steel with PTFE seats. The valves feature a blow-out proof stem and self-adjusting floating ball which provides uniform sealing. The full port design minimizes pressure drop for maximum flow efficiency. The three-piece swing-out design permits easy in-line maintenance.
Vic-Press for Schedule 10S x Vic-Press Schedule 10S (P x P)
Size | Dimensions Inches/mm | Approx. Wgt. Each | ||||
---|---|---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | A End to End | B | C | E | Lbs. kg |
½ | 0.84 | 8.26 | 2.17 | 1.06 | 5.24 | 1.5 |
15 | 21.3 | 209.8 | 55.1 | 26.9 | 133.1 | 0.7 |
¾ | 1.05 | 8.36 | 2.32 | 1.06 | 5.24 | 2.4 |
20 | 26.7 | 212.3 | 58.9 | 26.9 | 133.1 | 1.1 |
1 | 1.315 | 8.77 | 2.76 | 1.19 | 6.02 | 3.6 |
25 | 33.4 | 222.8 | 70.1 | 30.2 | 152.9 | 1.6 |
1½ | 1.9 | 9.76 | 3.31 | 1.38 | 7.52 | 6.9 |
40 | 48.3 | 247.9 | 84.1 | 35.1 | 191 | 3.1 |
2 | 2.375 | 9.83 | 3.62 | 1.63 | 7.52 | 9.5 |
50 | 60.3 | 249.7 | 91.9 | 41.4 | 191 | 44.3 |
Groove x Groove (G x G)
Size | Dimensions Inches/mm | Approx. Wgt. Each | |||
---|---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | A End to End | B | E | Lbs. kg |
¾ | 1.05 | 8.54 | 2.32 | 5.24 | 2.4 |
20 | 26.7 | 216.9 | 58.9 | 133.1 | 1.1 |
1 | 1.315 | 8.75 | 2.76 | 6.02 | 3.6 |
25 | 33.4 | 222.3 | 70.1 | 152.9 | 1.6 |
1½ | 1.9 | 10.9 | 3.31 | 7.52 | 6.9 |
40 | 48.3 | 276.9 | 84.1 | 191 | 3.1 |
2 | 2.375 | 12.11 | 3.62 | 7.52 | 9.5 |
50 | 60.3 | 307.6 | 91.9 | 191 | 4.3 |
Vic-Press Schedule 10S x Groove (P x G)
Size | Dimensions Inches/mm | Approx. Wgt. Each | |||
---|---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | A End to End | B | E | Lbs. kg |
¾ | 1.05 | 8.54 | 2.32 | 5.24 | 2.4 |
20 | 26.7 | 216.9 | 58.9 | 133.1 | 1.1 |
1 | 1.315 | 8.75 | 2.76 | 6.02 | 3.6 |
25 | 33.4 | 222.3 | 70.1 | 152.9 | 1.6 |
1½ | 1.9 | 10.9 | 3.31 | 7.52 | 6.9 |
40 | 48.3 | 276.9 | 84.1 | 191 | 3.1 |
2 | 2.375 | 12.11 | 3.62 | 7.52 | 9.5 |
50 | 60.3 | 307.6 | 91.9 | 191 | 4.3 |
SERIES 569 MATERIAL SPECIFICATIONS
Body: Stainless steel, CF8M, ASTM A-351
Ball: Stainless steel, CF8M, ASTM A-351
Stem: Stainless steel, Type 304/316
Seats: (PTFE) Polytetra uoroethylene
Handle: Stainless steel, Type 304
Stem Nut: Stainless steel, Type 304
Stem Washer: Stainless steel, Type 304
Stem Packing and Thrust Washer: (PTFE) Polytetra uoroethylene
Bolt/Nut/Washer: Stainless steel, Type 304
Cap:Stainless steel, CF8M, ASTM A-351
Extended Ends: Schedule 10S Stainless steel, type 304/316
Specify end style:
Vic-Press Schedule 10S x Vic-Press Schedule 10S (P x P)
Grooved End (G x G)
Vic-Press Schedule 10S x GroovedEnd (P x G)
WARNING |
---|
Vic-Press for Schedule 10S products for Type 304/316 stainless steel must only be used on services compatible with seal and fitting materials.Incompatible services may result in leakage. Always reference the latest Victaulic Gasket Selection Guide (05.01) for special seal service recommendations and for a listing of services which are not recommended. |
PERFORMANCE FLOW CHARACTERISTICS
Flow testing for the Vic - Press Style P569 3-Piece Ball Valve demonstrated superior flow characteristics. Testing was performed in our own engineering laboratory facilities with systems and equipment calibrated to National Bureau of Standards.
Cv and Kv values for flow coefficient of water at + 60°F/+16°C with a fully open valve are shown in tables below.
Formulas for Cv and Kv values
where:
Flow Coefficient | Cv | Kv |
Q (Flow) | GPM | m /hr |
P (Pressure Drop) | psi | bar |
Size | Full Open | |
---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches mm | Flow Coefficient CvKv |
½ | 0.84 | 10 |
15 | 21.3 | 9 |
¾ | 1.05 | 17 |
20 | 26.7 | 14 |
1 | 1.315 | 45 |
25 | 33.4 | 39 |
1½ | 1.9 | 125 |
40 | 48.3 | 107 |
2 | 2.375 | 365 |
50 | 60.3 | 314 |
SERIES P569 REPAIR KITS
Kits and replacement parts are available for the Series P569 valve.
The Repair Kit consists of two seats, two gaskets, one stem seal and one thrust washer, all made of PTFE.
A replacement ball of CF8M stainless steel is also available.
For replacement stem information, contact Victaulic.
Size | Repair Kit | Replacement Ball | |
---|---|---|---|
Nominal Size Inches mm | Actual Out. Dia. Inches mm | Part No. | Part No. |
½ | 0.84 | K-004-569-001 | K-004-569- 000 |
15 | 21.3 | ||
¾ | 1.05 | K-006-569-001 | K-006-569- 000 |
20 | 26.7 | ||
1 | 1.315 | K-010-569-001 | K-010-569- 000 |
25 | 33.4 | ||
1½ | 1.9 | K-014-569-001 | K-014-569-000 |
40 | 48.3 | ||
2 | 2.375 | K-020-569-001 | K-020-569- 000 |
50 | 60 |
WARNING |
---|
It is the responsibility of designers of piping systems to verify the suitability of ASTM A-312 Schedule 10S Type 304/316 stainless steel pipe for use with the intended fluid media. The fluid schemical composition, pH level, operating temperature, chloride level, oxygen level and flow rate and their effect on ASTM A-312 Type 304/316 stainless steel must be evaluated by the material specier to confirm system life will be adequate for the intended service.Failure to do so may cause serious personal injury or property damage. |
Vic-Press Brass Body Ball Valve with Stainless Steel Vic-Press Schedule 10S Ends
SERIES P589 (P × P)
Working pressure: 300 psi/2065 kPa
Series 589 Ball Valve is a full port valve with Vic-Press Schedule 10S ends for fast, easy installation. The valve, with Vic-Press Schedule 10S ends, is designed for service to 300 psi/2065 kPa.
The valve body is constructed from forged brass. The ball is chrome plated brass and seals on PTFE seats. A hollow ball design eliminates unnecessary weight while maintaining flow and mechanical strength. PTFE seats and washers reduce the friction coefficient which eases valve operation.
The Vic-Press Schedule 10S ends are of ASTM A-312 Type 304/316 stainless steel.
Size | Dimensions - Inches/mm | Approx. Weight Each | |||||
---|---|---|---|---|---|---|---|
Nominal Size Inches mm | Actual Outside Diameter Inches/mm | A ± 0.125 3.18 | B | C | D | Lbs. kg | Flow Coefficient@ (Fully Open) CV Values KV Values |
½ | 0.84 | 9.03 | 1.42 | 3.03 | 1.06 | 1 | 11 |
15 | 21.3 | 229.36 | 36.1 | 77 | 26.9 | 0.5 | 9.4 |
¾ | 1.05 | 9.12 | 1.9 | 3.74 | 1.06 | 1.6 | 25 |
20 | 26.7 | 234.65 | 48.3 | 95 | 26.9 | 0.7 | 21.3 |
1 | 1.315 | 10.108 | 2.05 | 3.74 | 1.19 | 2.8 | 36 |
25 | 33.4 | 256.74 | 52.1 | 95 | 30.2 | 1.3 | 30.7 |
1½ | 1.9 | 11.18 | 2.76 | 5.4 | 1.38 | 4.7 | 112 |
40 | 48.3 | 283.97 | 70.1 | 137.2 | 35.1 | 2.1 | 95.5 |
2 | 2.375 | 12.69 | 3.15 | 5.4 | 1.63 | 6.9 | 195 |
50 | 60.3 | 322.33 | 80 | 137.2 | 41.4 | 3.1 | 166.3 |
SERIES 589 MATERIAL SPECIFICATIONS
Valve Body: | Forged Brass ASTM B-30 |
Ball: | Brass ASTM B-30, chrome plated |
Stem: | Brass ASTM B-16 |
Seats: | (PTFE) Polytetra uoroethylene |
Handle: | Carbon steel, zinc plated |
Stem Nut: | Carbon steel, zinc plated |
Stem Washer: | (PTFE) Polytetra uoroethylene |
Extended Ends: | Schedule 10S Stainless Steel, Type 304 / 316 |
WARNING |
---|
Vic-Press for Schedule 10S products for Type 304/316 stainless steel must only be used on services compatible with seal and fitting materials.Incompatible services may result in leakage. Always reference the latest Victaulic Gasket Selection Guide (05.01) for specific seal service recommendations and for a listing of services which are not recommended. |
PIPE SUPPORT
SERIES 589 MATERIAL SPECIFICATIONS
Piping joined with Vic-Press Schedule 10S products for Type 304/316 stainless steel, like all other piping systems, requires support to carry the weight of pipes and equipment. As for other methods of joining pipes, the support or hanging method must be such as to eliminate undue stresses on joints, piping and other components. Additionally, the method of support must be such as to allow move - ment of the pipes where required and to provide drainage, etc., as may be specied by the designer.
The maximum hanger spacing corresponds to ASME B31.1, B31.3 or B31.9 as noted and should be used in conjunction with Victaulic Vic-Press Schedule 10S System on Type 304/316 Schedule 10 stainless steel pipe.
Pipe Size | Suggested Max. Span Between Supports - Feet/meters | ||||||
---|---|---|---|---|---|---|---|
Nominal Size Inches mm | Actual Out. Dia. Inches mm | Water Service | Gas/Air Service | ||||
B31.1 | B31.3 | B31.9 | B31.1 | B31.3 | B31.9 | ||
½ | 0.84 | 6.5 | 6.5 | 7.0 | 7.0 | 7.0 | 7.5 |
15 | 21.3 | 2 | 2 | 2.1 | 2.1 | 2.1 | 2.3 |
¾ | 1.05 | 7.5 | 7.5 | 8.5 | 8 | 8 | 9 |
20 | 26.7 | 2.3 | 2.3 | 2.6 | 2.4 | 2.4 | 2.7 |
1 | 1.315 | 8.5 | 8.5 | 10 | 9.0 | 9.0 | 10.5 |
25 | 33.4 | 2.6 | 2.6 | 3.1 | 2.7 | 2.7 | 3.2 |
1½ | 1.9 | 10.0 | 10.0 | 12.5 | 11.0 | 11.0 | 13.5 |
40 | 48.3 | 3.1 | 3.1 | 3.8 | 3.6 | 3.6 | 4.1 |
2 | 2.375 | 11.0 | 11.0 | 13.0 | 12.5 | 12.5 | 15.5 |
50 | 60.3 | 3.6 | 3.6 | 4 | 3.8 | 3.8 | 4.7 |
VVic-Press Tool
Vic-Press PFT510
The PFT-510 Vic-Press tool is specially designed to join Vic-Press components to Schedule 10S* stainless steel pipe.
* Can also be used for Schedule 5S pipe using Vic-Press components.
Tool package includes one (1) Vic-Press PFT510 tool, two (2) 18V Lithium Ion batteries, one (1) battery charger, one (1) tool carrying case, one (1) jaw carrying case, one (1) ."/15mm jaw, one (1) ."/20mm jaw, one (1) 1"/25mm jaw, one (1) 1."/40mm hinged jaw, one (1) 2"/50mm hinged jaw, and one (1) adapter jaw, one (1) set of insertion gauges, one (1) cleaning brush, and one (1) marker.
Jaws are included with every tool purchase.
Vic-Press PFT510 is designed for industrial and trade use only.
Capacity: ½"/15mm, ¾"/20mm, 1"/25mm, 1 ½"/40mm, 2 "/50mm Sch10S stainless steel pipe.
Power Charger Requirements: 110 volt/60 cycle/6.5 amp.
Optional: 220 volt.
Note: The Vic-Press for Schedule 10S System is not compatible with PFT505 and/or PFT509 tools/components. The Vic-Press Schedule 10S System requires the use of a Vic-Press PFT510 tool package.
WARRANTY
NOTE: This product shall be manufactured by Victaulic or to Victaulic speci cations. All products to be installed in accordance with current Victaulic installation/assembly instructions. Victaulic reserves the right to change product speci cations, designs and standard equipment without notice and without incurring obligations.
